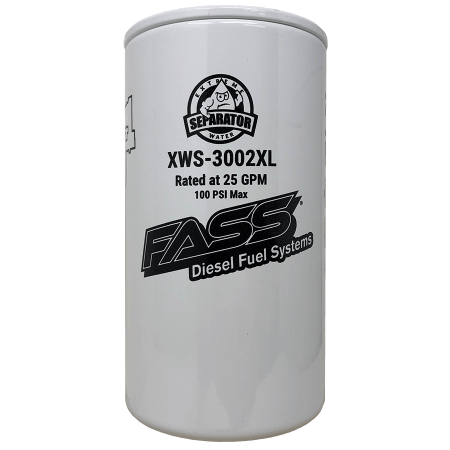

FASS Fuel Systems Extended Length Extreme Water Separator Filter

Our New more efficient Extreme Water Separator is rated @ 2 microns absolute. Our water separator no longer has a drain because the filter element traps the water.

The new XWS3002XL MUST be used in conjunction with the PF3001XL, the new filters cannot be used in combination with the FF-3003/FF-3010 or FS-1001/FS-1020.
When replacing the discontinued filters with the new XWS3002XL and PF3001XL, the XWS3002XL will now be placed on the pressure side of the System and the PF3001XL will be placed on the suction side.

Please Note: SEE THE LOCATION DIAGRAM ON THE NEW FILTERS FOR PROPER FILTER PLACEMENT!

If our XL Extreme Water Separator is not compatible with your application due to length, please use our standard length extreme water separator XWS3002.

For use with: FASS Competition Series, Industrial Series, Drop-In Series, FASS Titanium Series or FASS Titanium Signature Series Systems
