2013-2018 6.7 Cummins S400 High Mount 2nd Gen Swap Kit

This kit will allow you to install an S400 based Turbo on your 2013-2018 6.7 Cummins with an ATS or Steed Speed 2nd Gen Style Exhaust Manifold (Sold Separate). Kit includes all components needed to install turbo. We mount the manifold pointing up which allows for a quick and simple down pipe install- no cutting of your exhaust system required! Our down pipe connects to the v-band flange on the exhaust system front pipe just as your factory turbo/cast elbow did. No Bending of AC lines is required with this kit! Stainless steel oil feed (#6) and oil drain (#10) lines. OEM Coolant tank can be used. All tubing is TIG welded and mating flanges are CNC machined with O-ring seals where necessary for a boost-leak free setup.

NOTE: KIT IS NOT COMPATIBLE WITH RACE COVER STYLE TURBO'S.

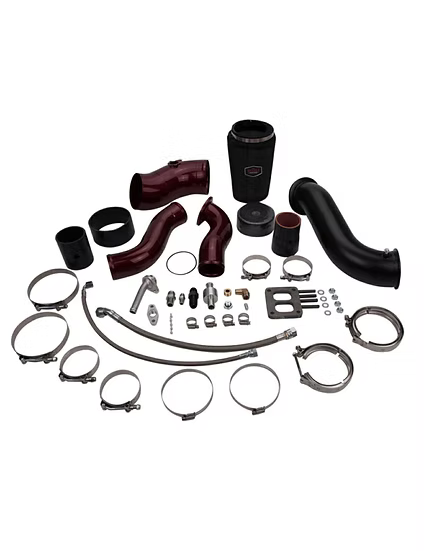

Includes:

-4" Down Pipe (Mates to Exhaust system v-band)

-5" Intake with sensor bungs

-Dry Air Filter

-Outerwear's Pre-Filter Cover

-#6 Stainless Oil Feed Line & Fitting

-#10 Stainless Oil Drain Line & Fittings

-3" Hot Side Intercooler Pipe

-1/2" T4 Spacer plate with hardware

-Coolant Lines and Fittings, (Stand pipe removal fitting)

-Silicone Boots

-T-Bolt Clamps

-Crank Case Breather Kit

-Necessary Hardware

-Powder Coating

Option items which can be purchased to make it a 100% complete kit.

Steed Speed Manifold HERE

S400 Series Turbo HERE

T4 Exhaust Housing Blanket HERE

***COMMONLY ASKED QUESTIONS***

Q: Can I order this kit raw?

A: Under no circumstances are we able to ship a raw kit that is not powder coated.

Q: I often times see listings on the internet that are old and outdated. Do you actually have these kits?

A: We sure do and have a very solid reputation for having hard to find parts in stock!

Q: How long does standard shipping take?

A: All kits are located here in Pennsylvania so figure 1-3 businesss days from the time the order ships for east coast to mid west. 3-5 business days for central to west coast. If you select the optional turbo, that ships from our vendor so that will usually show up after the installation kit.
