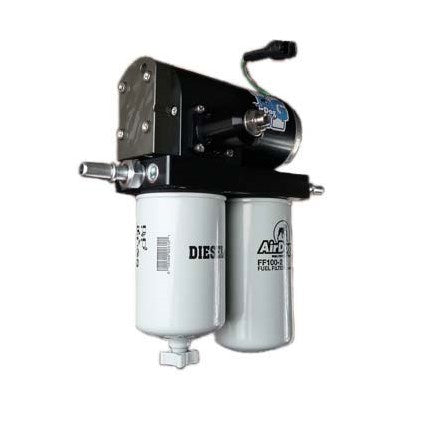

AirDog II 5G Lift Pump (165 GPH) - 11-16 Ford Powerstroke 6.7L

Product Name: AirDog II-5G (165 GPH) - 2011-2016 Ford Powerstroke 6.7L
Manufacturer: AirDog
Manufacturer Part #: A7SABF589
Thoroughbred Diesel Part #: PFTA7SABF589
Fitment Notes: 2011-2016 Ford Powerstroke 6.7L

The Pureflow AirDog II-5G A7SABF589 DF-165-5G Air/Fuel Separation System is the newest generation in fuel delivery systems for your 2011-2016 Ford 6.7L Powerstroke. The 5G is engineered to be the longest lasting, most efficient, and quietest lift pump system AirDog has to offer.

The AirDog II-5G features a 4-bearing motor with an intermediate shaft that reduces pump noise and improves reliability. A dual feed design supplies fuel to both sides of the gerotor pump to decrease air bubbles and cavitation. The demand flow design allows the pump to only send the necessary amount of fuel to the engine.

The AirDog II-5G utilizes a diaphragm style fuel pressure regulator allowing the pump to be boost referenced and adjusted from 7-70 PSI The 5G system features larger 3/4-16 O-ring boss inlet and outlet ports. A 7/16-20 (-4) low-flow return is used to prevent aeration in the fuel being sent to back to the tank.

AirDog II-5G Features:

• 165 GPH Pump
• 4 Bearing Motor with Intermediate Shaft
• Larger Ports Over Previous Pumps
• Diaphragm Fuel Pressure Regulator
• Demand Flow Design
• Reduced Aeration From Low Flow Return

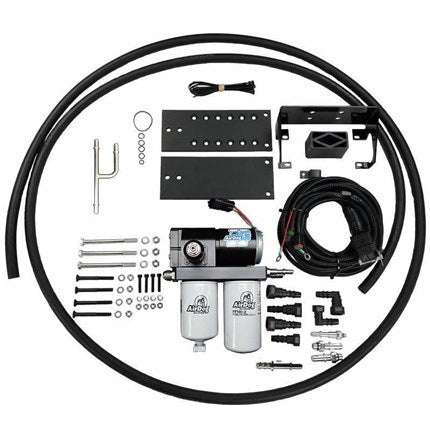

• Relay Control Wiring Harness
• All Required Fuel Fittings
• All Require Fuel Lines
• Mounting Brackets and Hardware
• Installation Manual
